2CMX-2 potato planter utilizing advanced vibration and tensioning technologies within its seeding units, the equipment achieves low rates of missed and double seeding while ensuring high planting precision. Furthermore, by incorporating precision planting units and depth-control technology, the system enhances its adaptability to various field conditions. All performance and quality metrics have undergone rigorous testing and verification by relevant regulatory bodies.
2CMX-2 potato planter brings immense convenience to potato cultivation, significantly reducing labor intensity, boosting labor productivity, and lowering production costs, thereby yielding substantial overall economic and operational benefits.
The potato planting machine planting unit with a self-intellectual property rights of the "bowl of spoon" type of seed device and vibration, shaking, chain tensioning mechanism, to achieve without the need for artificial to achieve precision seeding, so that leakage index than the current Less than 15%, reduced to less than 10%, heavy index than the current less than 25%, reduced to less than 20%, seedling bud damage rate than the current less than 2%, reduced to less than 1.5% , Seed potato spacing qualified index than the current not less than 67%, increased to not less than 85%.
The depth control of potato planting machine is controlled by single body limited profile, which solves the unevenness of planting depth caused by geographical and soil factors and improves the stability of sowing depth.
The existing potato growers use plow-type soil or disk-type soil pad, the angle is not easy to adjust, ridge irregular. The potato planting machine broke through the inherent model, developed a disc-type rudder, the scope of application has been expanded to make the applicable spacing than the current 600-700mm, increased to 700-900mm, to adapt to the current spacing of 200-350mm, To 170-440mm, ridge control more diverse, able to meet the different agronomic requirements.
The potato bowl is designed into three different sizes of interchangeable, staggered and other spacing arranged in the seed device potatoes on the back of the bowl spoon with a flanging.

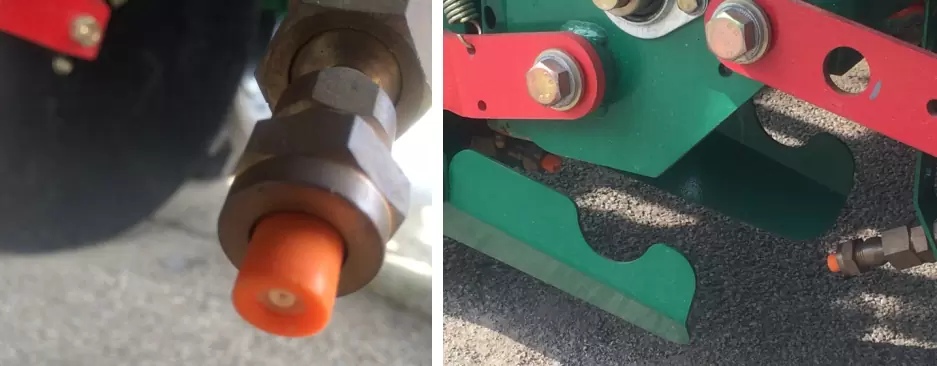

Spraying system uses a higher degree of atomization of the PTFE nozzle, not only its angle adjustable, but also by the traditional seed potato after the spray to change the front and rear spray, so that more closely covered.
